Autel MS909CV is an upgraded version of MS908CV. This product is equipped with the hardware configuration of MS909, has been upgraded in the heavy truck diagnosis of MS908CV, and has added battery/boot/charging system test equipment MaxiBAS B200, alligator clip, multimeter, and amplifier clip, it Can meet a variety of needs.
$3,509.00
$3,509.00
Model: MS909CV
MS908CV MS909CV
MaxiSYS MS909CV

MaxiSYS MS909CV

$3,509.00
MaxiSYS MS909CV
MaxiSYS MS909CV
MaxiSYS MS909CV

MaxiSYS MS909CV

$3,509.00
Model: MS909CV

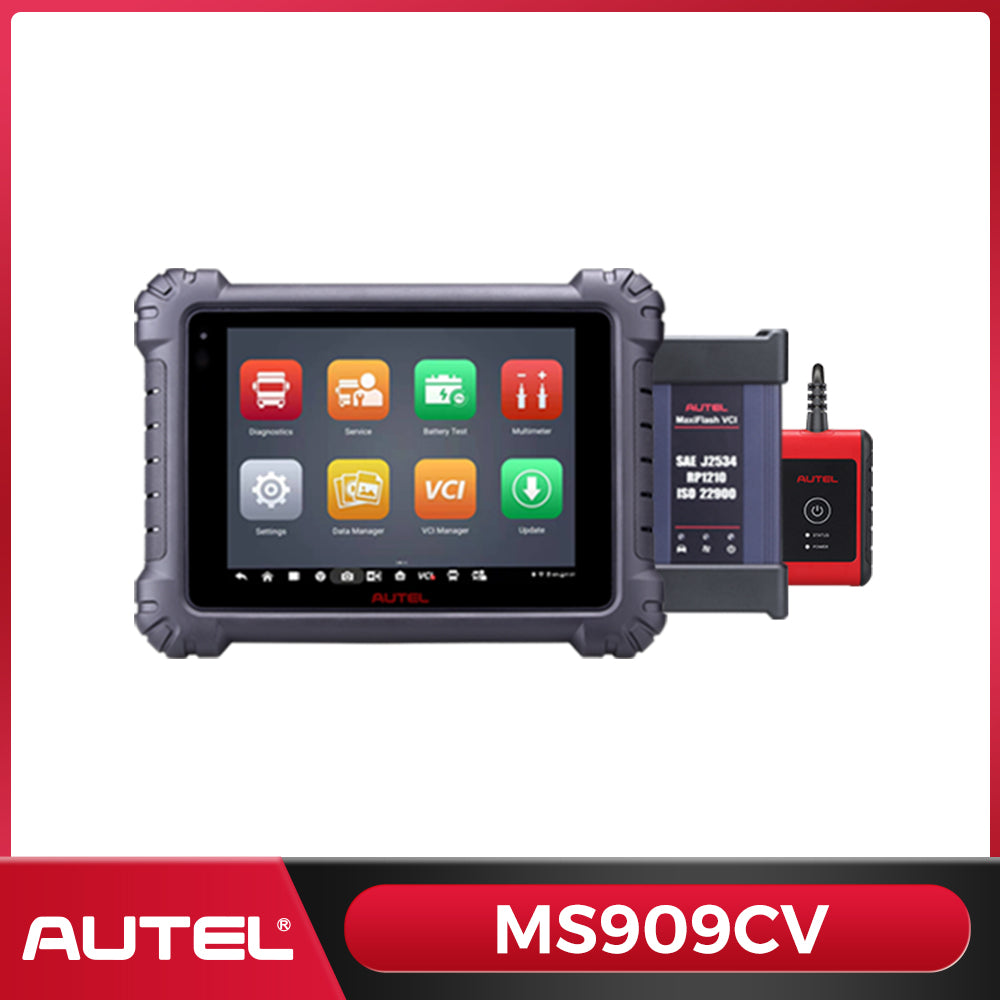

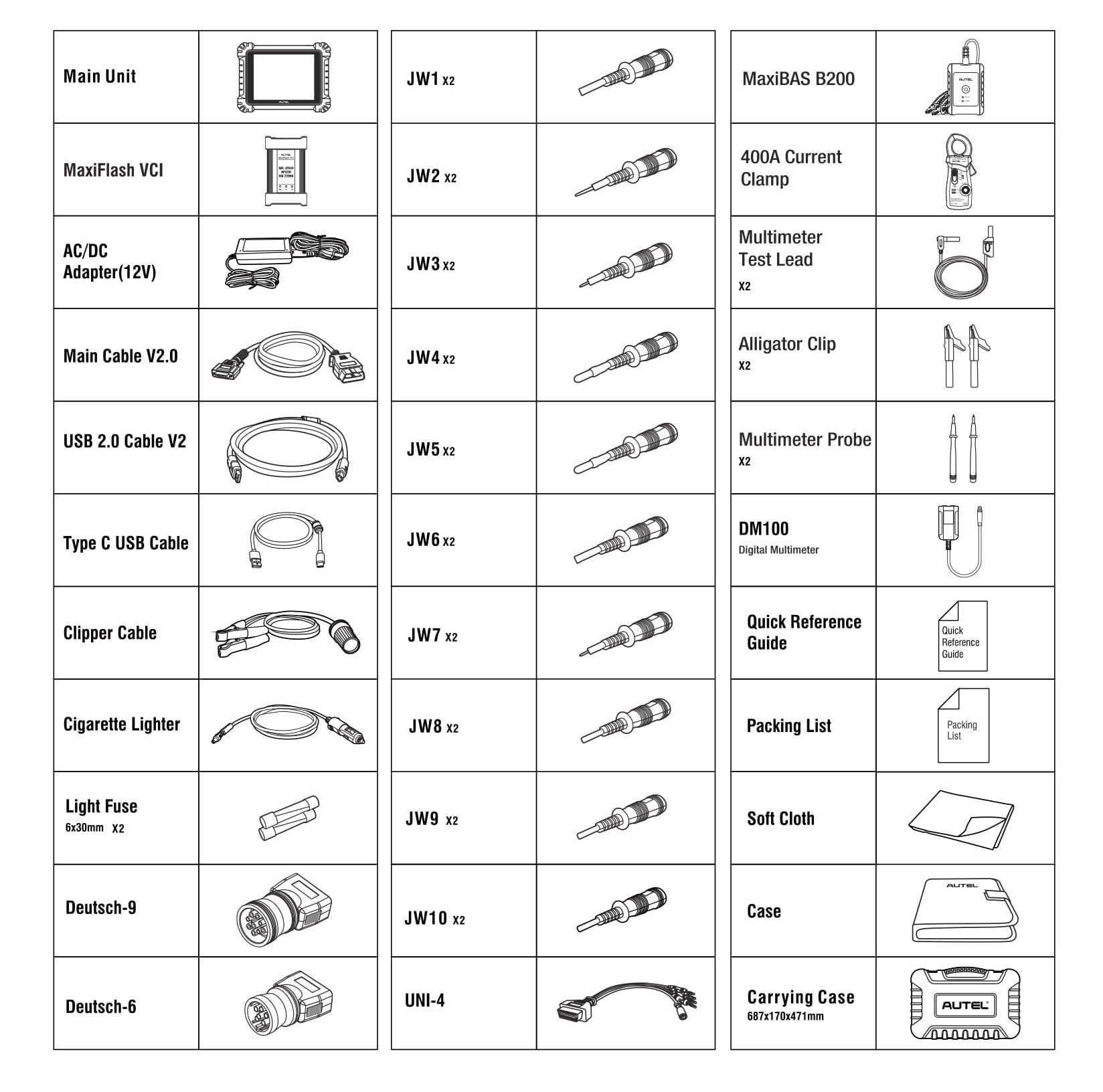

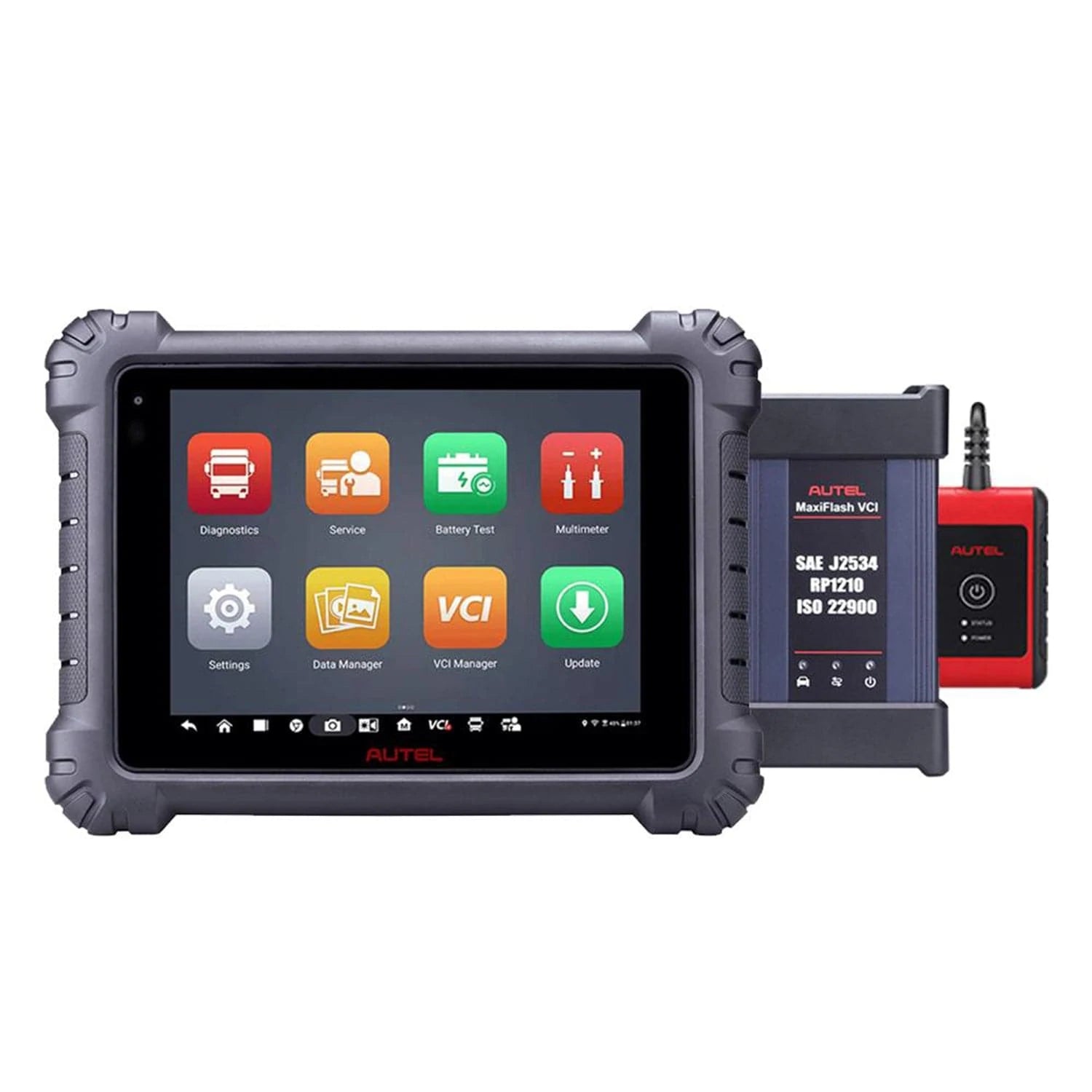

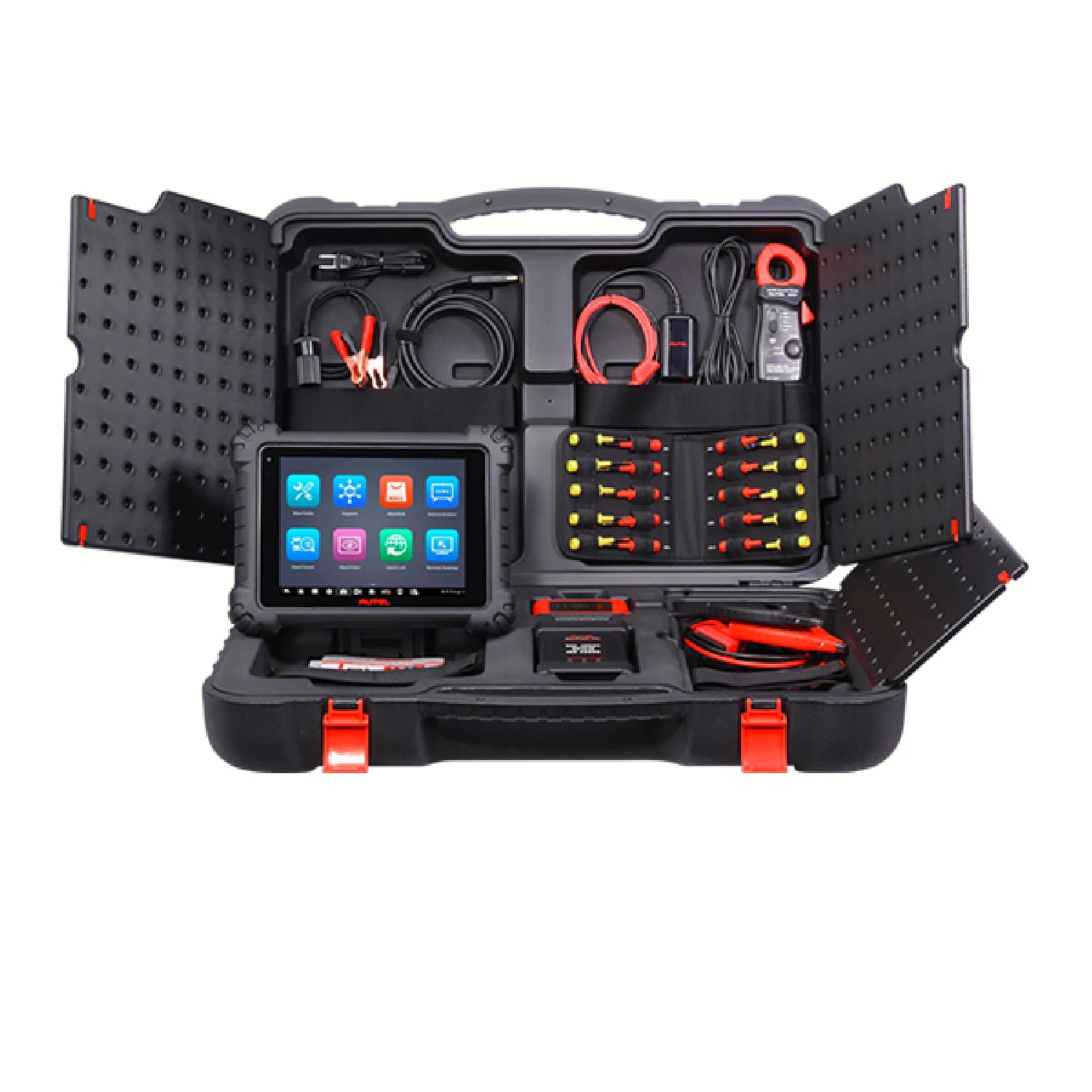

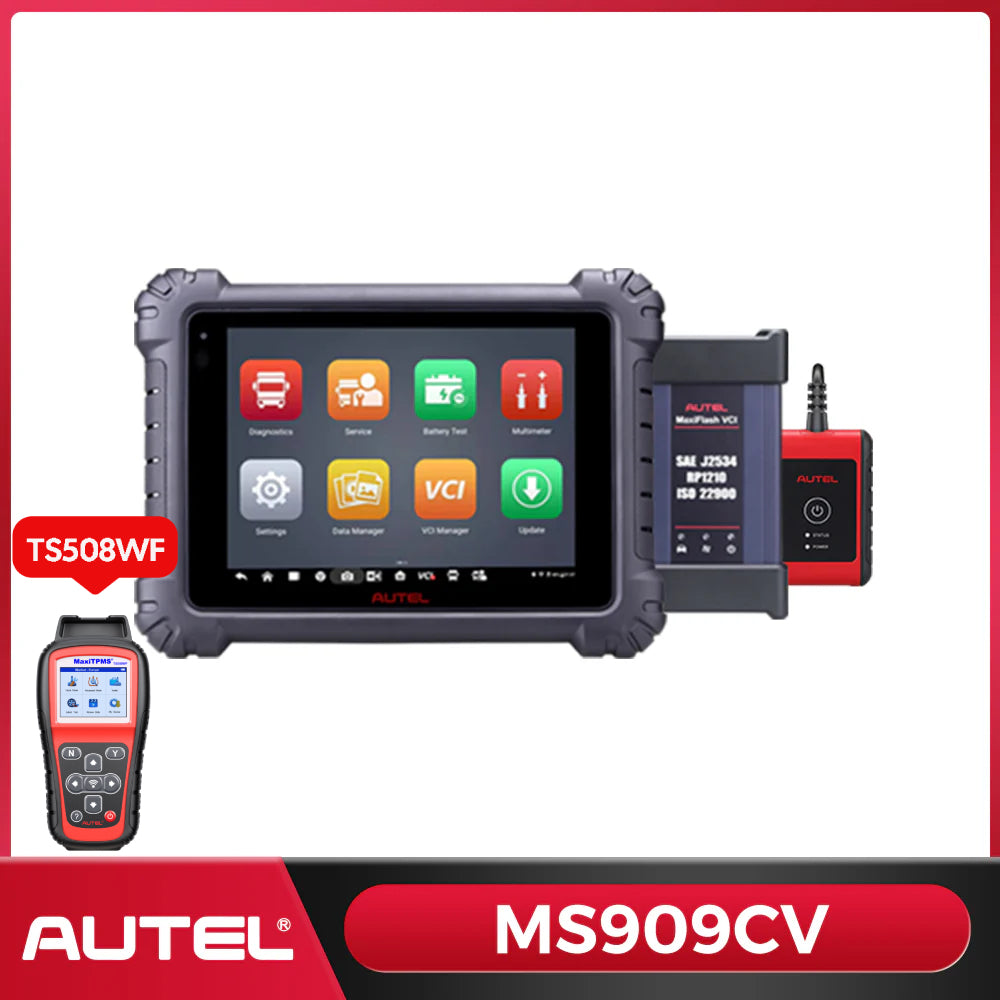

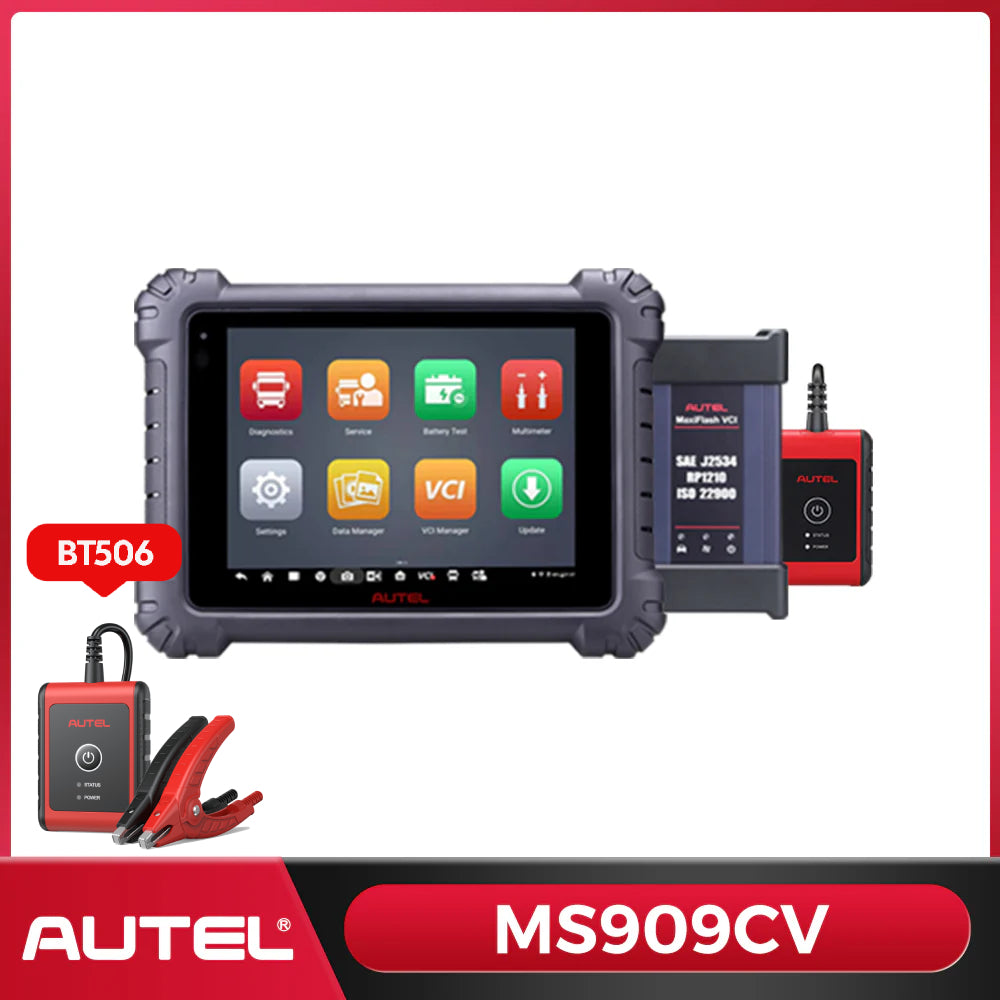

    Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with over 80 light, medium and heavy duty vehicles. The 9.7-inch Android-based wireless touchscreen tablet performs extensive diagnostics, including the ability to read/erase codes, view/plot live data, and perform active tests. The tablet includes a Bluetooth enabled Vehicle Communication Interface (VCI)/J2534 pass-through device, MaxiBAS B200 battery/start/charge system test device, alligator clips, multimeter and amplifier clips. Equipped with ADAS calibration software for class 3-5 and class 6-8 vehicles, the tablet features a dynamic calibration system.

    •Upgraded Octa-Core processor and 128GB storage and Android 10.0 Operating System with 9.7” Touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation

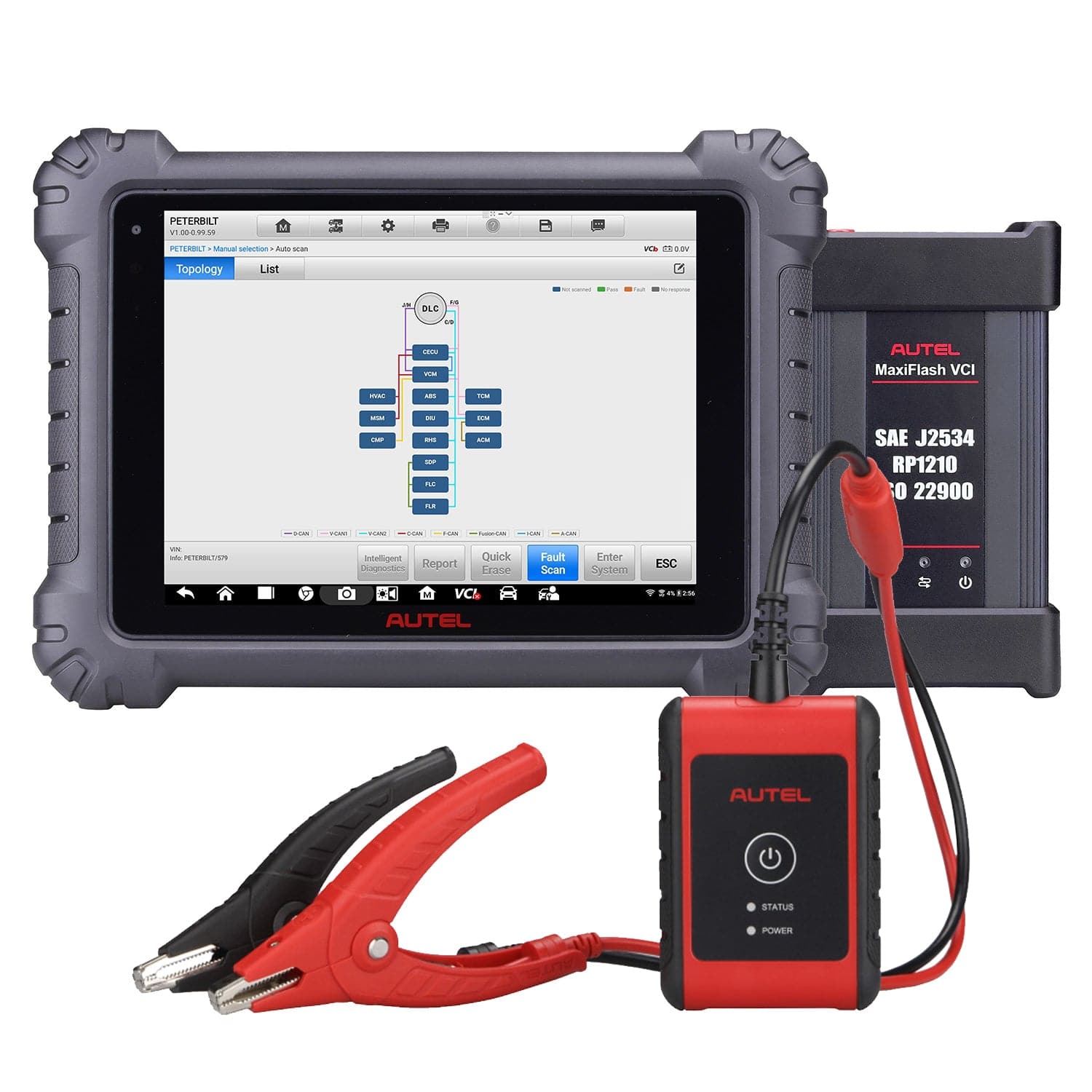

    •Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan

    •ADAS Calibration with new Class 6-8 Dynamic Calibration, Supporting Class 3-5 Complete ADAS Coverage. The Class 6-8 Static Calibration (coming soon)

    •Support heavy Duty Battery Test & Health Report

    Operating   SystemAndroid 10.0
    Processor

    Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

    Memory4GB   RAM & 128GB On-board Memory
    Display9.7-inch   TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
    ConnectivityDual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
    BT V5.0 + BR/EDR
    GPS
    USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
    HDMI 2.0
    SD Card (Support up to 256GB)
    CameraRear:  16 Megapixel, Autofocus with Flashlight
    Front:  16 Megapixel
    SensorsGravity   Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/OutputMicrophone
    Dual Speakers
    3-Band 3.5 mm stereo/standard headset jac
    Power and Battery15000mAH   3.8V lithium-polymer battery
    Charging via 12V AC/DC power supply with the   temperature between 0°C and 45°C
    Input Voltage12V/1.3A  Adapter
    Operating Temperature0 to 50°C (32 to 122°F)
    Storage Temperature-20 to 60°C (-4 to 140°F)
    Dimensions(W x H x D)304.4   mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
    Weight1.66kg   (3.66 lb.)
    ProtocolsDoIP,   PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire   Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,   ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda   Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART   with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,   SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

  • Autel MaxiSys MS909CV Quick Start Guide(1)

    Download

  • MaxiSys MS909cv User Manual_EN_

    Download

  • Description

    • Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with over 80 light, medium and heavy duty vehicles. The 9.7-inch Android-based wireless touchscreen tablet performs extensive diagnostics, including the ability to read/erase codes, view/plot live data, and perform active tests. The tablet includes a Bluetooth enabled Vehicle Communication Interface (VCI)/J2534 pass-through device, MaxiBAS B200 battery/start/charge system test device, alligator clips, multimeter and amplifier clips. Equipped with ADAS calibration software for class 3-5 and class 6-8 vehicles, the tablet features a dynamic calibration system.

    •Upgraded Octa-Core processor and 128GB storage and Android 10.0 Operating System with 9.7” Touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation

    •Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan

    •ADAS Calibration with new Class 6-8 Dynamic Calibration, Supporting Class 3-5 Complete ADAS Coverage. The Class 6-8 Static Calibration (coming soon)

    •Support heavy Duty Battery Test & Health Report

  • Specifications
    • Operating   SystemAndroid 10.0
    Processor

    Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

    Memory4GB   RAM & 128GB On-board Memory
    Display9.7-inch   TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
    ConnectivityDual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
    BT V5.0 + BR/EDR
    GPS
    USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
    HDMI 2.0
    SD Card (Support up to 256GB)
    CameraRear:  16 Megapixel, Autofocus with Flashlight
    Front:  16 Megapixel
    SensorsGravity   Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/OutputMicrophone
    Dual Speakers
    3-Band 3.5 mm stereo/standard headset jac
    Power and Battery15000mAH   3.8V lithium-polymer battery
    Charging via 12V AC/DC power supply with the   temperature between 0°C and 45°C
    Input Voltage12V/1.3A  Adapter
    Operating Temperature0 to 50°C (32 to 122°F)
    Storage Temperature-20 to 60°C (-4 to 140°F)
    Dimensions(W x H x D)304.4   mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
    Weight1.66kg   (3.66 lb.)
    ProtocolsDoIP,   PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire   Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,   ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda   Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART   with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,   SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
  • Video
  • Downloads

  • Autel MaxiSys MS909CV Quick Start Guide(1)

    Download

  • MaxiSys MS909cv User Manual_EN_

    Download
