$389.00
$389.00
PayPal Visa Mastercard American Express pay later with klarna
free shipping by UPS, DHL or FedEx
Model: MX808S
MX808S MK808S MK808K-BT MK808S-TS MP808S MP808S-TS

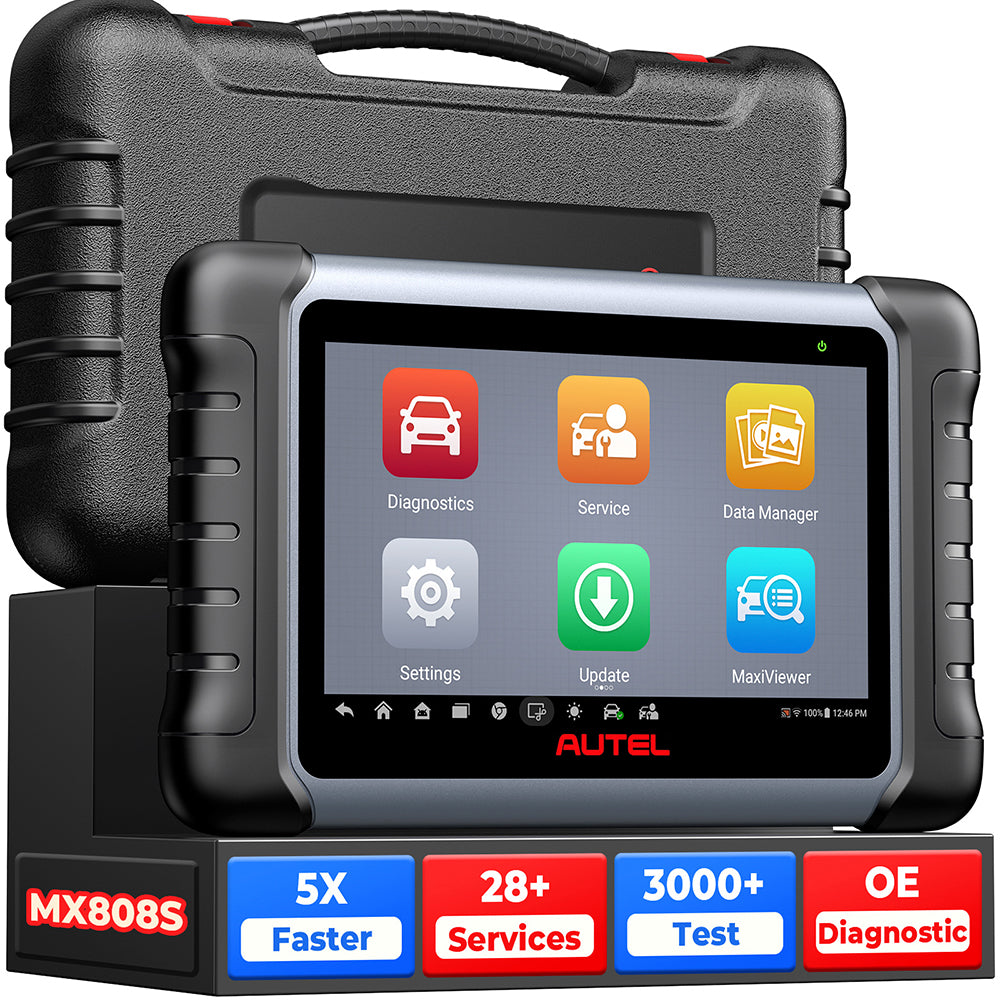

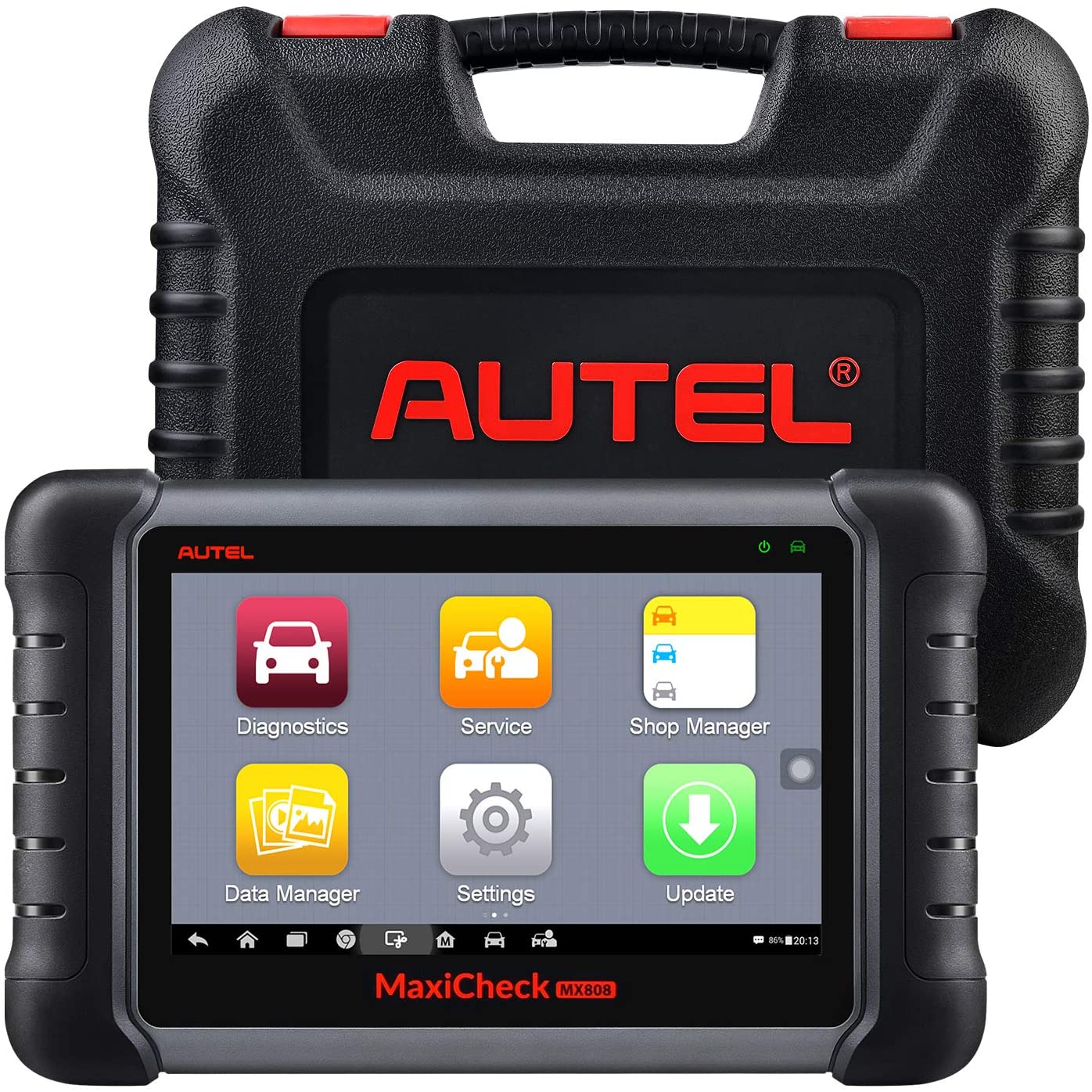

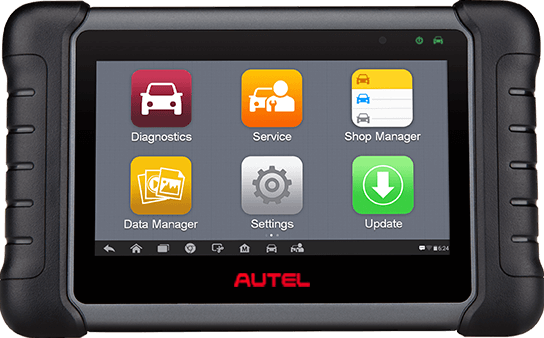

    Autel MaxiCheck MX808S is an All System Automotive Diagnostic Scan Tool. MaxiCheck MX808 comes to to ultra-portability, it is an perfect device for you. MX808 adopts fast quad-core processor technology, it will provide you maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.



    Autel MaxiCheck MX808 is combination of tool features from the MaxiCHECK Pro and MaxiDIAG MD802, it is combined into one Android-based tablet that offers more service functions than the either of the older units. Moreover, MX808 could offer wireless printing via wifi like a MaxiSYS, but it is not a full function scanner like a MS906 or ms908.

    MaxiCheck MX808

    When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.

    Autel MaxiCheck MX808 Features

    • Read/clear codes for all available systems
    • Display live data in text, graph & analog for easy data review

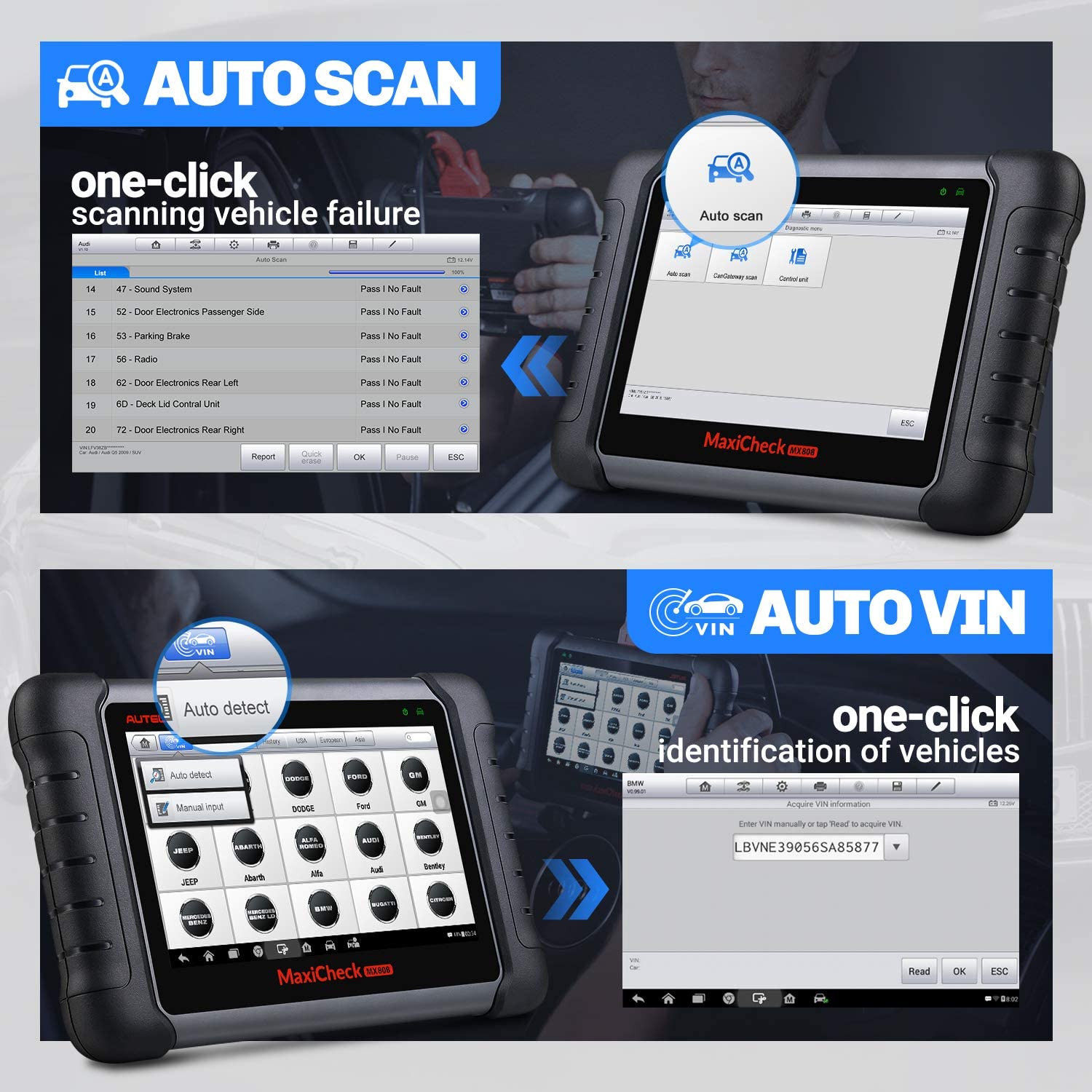

    • Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
    • Relearn parking brake pad after replacement
    • Support IMMO functions
    • Support forced DPF regeneration and adjusting injectors
    • Reset Steering Angle Sensor (SAS)
    • Reset service mileage and service intervals
    • Support TPMS sensor relearn
    • Support battery registration and reset

    Recommended UseIndoor
    Operating SystemAndroid™ 4.4.4, KitKat
    ProcessorCortex-A9 processor(1.5 GHz)
    Memory32GB
    Display7-inch LCD capacitive touchscreen with 1024x600 resolution
    ConnectivityMini USB 2.0
    USB2.0
    Wi-Fi
    HDMI Type A
    Micro SD card slot(supports up to 32GB)
    SensorsLight sensor for brightness auto adjust
    Audio input/output

    Input: N/A

    Output: buzzer

    Power and Battery3.7 V/5000 mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Tested Battery LifeAround 7 hours of continuous use
    Battery Charging Input5V/1.5A
    Power Consumption600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
    Operating Temp-10to60°C(14to140°F)
    Storage Temp-20to70°C(-4to158°F)
    Operating Humidity5%-95%non-condensing
    Dimensions(WXHXD)270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4)
    Net Weight885g(2.31|b.)
    ProtocolsISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
    SAE-J1850 VPW,SAE-J1850PWM,
    ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
    SAE J2610,GM UART UART Echo Byte Protocol
    Honda Diag-H Protocol,TP2.0,TP1.6
     MaxiDAS
    DS808    		MaxiDAS
    DS808TS    		MX808MX808TS
    Read Codes√√√√
    Erase Codes√√√√
    Live Data√√√√
    ECU Information√√√√
    Active Test√√----
    Service Functions√√----
    Complete OBD Diagnositcs√√√√
    Oil Serive Reset√√√√
    Parking Brake Pad
    Relearn After Replacement    		√√√√
    Steering Angle
    Sensor Relearn    		√√√√
    Battery Registration
    and Reset    		√√√√
    Diesel Particulate
    Filter Regeneration    		√√√√
    Tire Pressure
    Monitoring System    		BasicCompleteBasicComplete
    Immobilizer Function √√√√
    Advanced TPMS Diagnostics
    for Complete TPMS
    Health Check    		--√--√
    Activate 98% of All
    Known TPMS Sensors    		--√--√
    Program AUTEL MX-Sensors--√--√
    Comprehensive OBD
    relearn coverage    		--√--√
    On-screen
    Relearn Procedure    		--√--√
    ProcessorQuad-core 1.6GHzQuad-core 1.6GHzQuad-core 1.6GHzQuad-core 1.6GHz
    OSAndroid 4.4.4Android 4.4.4Android 4.4.4Android 4.4.4
    Memory1G + 32G1G + 32G1G + 32G1G + 32G
    Display7" LCD7" LCD7" LCD7" LCD
    Battery5000 mAh5000 mAh5000 mAh5000 mAh
    Internet UpdatableWiFiWiFiWiFiWiFi
    Multilingual Support√√√√
    Historical
    Test Records    		√√√√
    Save and
    Playback Data    		√√√√
    Print Data via
    Windows PC
    or WIFI printer    		√√√√
    Vehicle communication methodWiredWireless (bluetooth)WiredWireless (bluetooth)

    • MaxiCheck MX808 User Manual V2.0 EN190614(2)

      Download

    • MaxiSYS and MaxiIM Comparison Chart

      Download

    1pc x User Manual
    1pc x Quick Reference Guide
    1pc x Main cable
    1pc x USB External Power Adapter
    1pc x Carry case
    1pc x Mini USB Cable
