AUTEL MX-Sensors 433MHz, the programmable universal sensors, are both smart and efficient specially built for sensor replacement to perform like OE sensors, in terms of signal interval, durability and functionality supporting up to 99% of the US and Canadian vehicles. The 2-SKU sensor solution that covers over 98% of all OE sensors on the market will greatly simplify your inventory management and lower investment and sales loss.
Note:

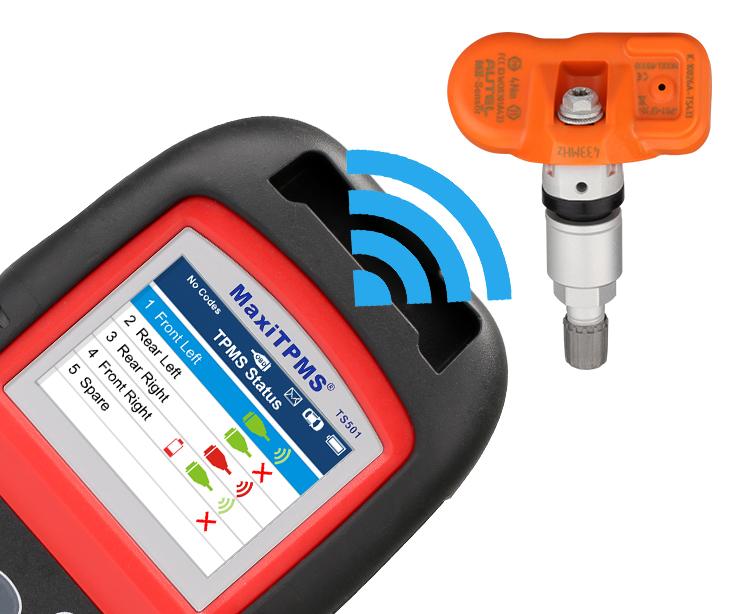

AUTEL MX-Sensor 433MHz TPMS programmable universal sensors work with MaxiTMPS TS601, which have the ability of both program or active sensor, but TS401 only with the activate function
Features:
1.Built to perform like OE sensor, in terms of signal, durability and functionality
2.Automotive battery grade to meet severe weather conditions
3.High-precision air valve to prevent air leakage
4.Replaceable aluminum valve stem is anodized for corrosion resistance
5.Robust clamp-in pivoting stem design allows for 0-35 degree angle adjustment to fit all types of wheels
6.Fast and simple assembly onto any wheels
Battery Life | 4-6 years |
Operating Temperature | -40°C to +125°C |
Storage Temperature | -40°C to +35°C |
Operating Humidity | ≤90% |
Operating Frequency | 433 MHz |
Pressure Monitoring Range | 0 to 800 kPa |
Pressure Reading Accuracy | ±10 kPa |
Temperature Reading Range | -40°C to +125°C |
Temperature Reading Accuracy | ±5°C |
G Sensor Reading Accuracy | ±15% |
Transmission Power | 5-8 dBm |
Battery | 3.0 V |
Dimensions (W x H x D) | 55.1 mm x 29.4 mm x 21.8 mm |
Weight (Without Valve) | 18.5 g |
MX-Sensor M Quick Start Guide_EN.pdf
TS508_V6.19_FunctionList_AU.pdf
TS508_V6.19_FunctionList_EU.pdf
TS508_V6.19_FunctionList_JP.pdf
TS508_V6.19_FunctionList_KR.pdf
