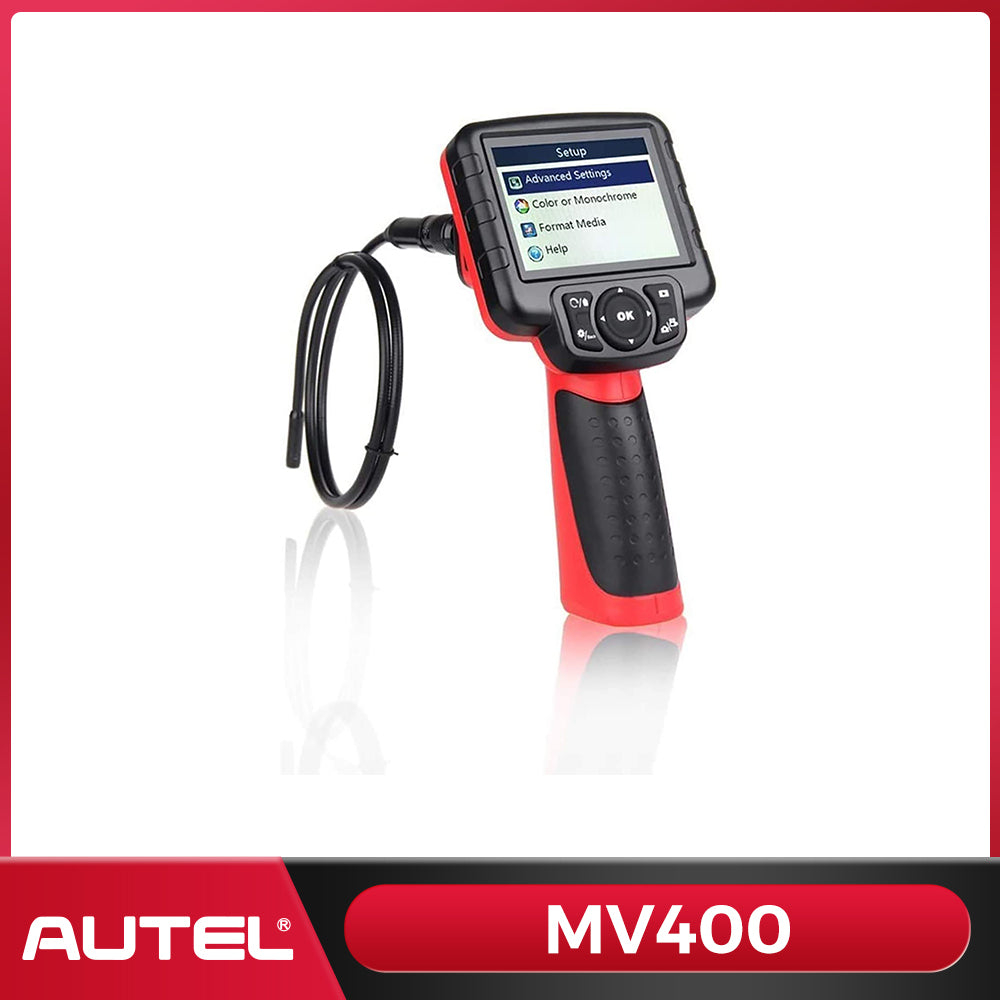

Autel MaxiVideo MV400 digital videoscope is an ideal tool for examining difficult- to- reach areas normally hidden from sight. MV400 can be used to record digital still images and MPEG2 or MPEG1 videos either on its internal flash memory.
Autel Maxivideo MV400 can be used to record digital still images and MPEG2 or MPEG1 videos either on its internal flash memory for more than 80 US, Asian and European vehicle
Autel MaxiVideo MV400 Feature & Functions:
1. 3.5 " high resolution full color LCD display (320x240)
2. Wide camera angle for images with 640x480 resolution
3. 5x digital zoom for increased viewing
4. Records and plays back still images and video clips
5. Mini USB connector for uploading images and videos to a computer
6. On-screen horizontal/vertical reverse
7. Narrow probe diameter available in 5.5mm(0.22") and fits most spark plug holes
8. With optional removable Micro SD cards, saves images and videos to take with anywhere
9. White LED to illuminate the inspection area, with illumination control
10. Views objects as close as 1"
11. Oil and scratch resistant tempered glass lens
12. 1M (39.4") semi-rigid, but flexible watertight shaft
13. Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use
14. Ergonomic and durable tool housing
15. Easy-to-use, multi-language interface
16. One-year limited warranty
Recommended use | Indoor |
Optimal viewing Distance | 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm diameter imager head |
Image capture | JPG images (640x480) AVI videos (320 x 240) |
Screen type display | 3.5" TFT LCD |
Display resolution | 320 x 240 |
Power supply | Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh) |
Tested battery life | 3-4 hours of continuous use |
Dimensions | 199 x 100 x 178mm (7.83" x 3.94" x 7.0") |
Recording medium | Micro SD card (Micro SD card is optional and not included) |
Imager head | 8.5mm (0.33") is standard and 5.5mm (0.22") is optional |
Waterproof | Imager head and cable to 3m (10') |
Additional ports | USB Video out (TV-out) port |
Operating temp | Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C) |
Storage temp | -4°F to 158°F (-20°C to 70°C) |
Video output | RCA |
TV out | NTSC PAL |
MaxiVideo MV400 | MaxiVideo MV500 | MaxiVideo MV480 | MaxiVideo MV460 | MaxiVideo MV160 | |
High resolution and full color digital LCD display | 3.5" (320×240) | 5” (1280×720) | 4.1" (1200×720) | 3.5'' (640 x 480) | Smartphone-based |
Record and play back high resolution still images and videos | 640×480 | 1280×720 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
Wireless monitor enables remote viewing | -- | √ | -- | -- | -- |
Touchscreen for convenient operation | -- | √ | -- | -- | -- |
Single button for quick photo and video recording | -- | -- | √ | √ | √ |
Add audio annotation for detail presentation | -- | √ | √ | -- | √ |
On-screen photo editing and markup | -- | √ | -- | -- | √ |
Dual cameras see straight ahead or at a 90° angle | -- | √ | √ | -- | -- |
Digital zoom for detailed viewing | 5× | 5× | 7× | 7× | 7× |
View objects as close as 1" | √ | √ | √ | √ | √ |
BOn-screen horizontal/vertical reverse | √ | √ | √ | √ | √ |
On-screen 90° clockwise rotation | -- | √ | √ | √ | √ |
Built-in & adjustable LED illuminates viewing area | √ | √ | √ | √ | √ |
HDMI port for monitor view | -- | √ | √ | √ | -- |
Mini USB connector for uploading images and videos | √ | √ | √ | √ | -- |
1 m long semi-rigid flexible watertight shaft | √ | √ | √ | √ | √ |
Narrow probe diameter available in both 5.5 mm and 8.5 mm | √ | 8.5 mm | 8.5mm (5.5mm Optional) | 8.5mm (5.5mm Optional) | 8.5mm (5.5mm Optional) |
Micro SD card slot for greater memory capacity | √ | √ | √ | √ | -- |
Oil and scratch resistant tempered glass lens | √ | √ | √ | √ | √ |
Ergonomic and durable tool housing | √ | √ | √ | √ | √ |
Built-in rechargeable Li-ion battery | √ | √ | √ | √ | √ |
Multilingual support | √ | √ | √ | √ | √ |
Water Resistant Camera head | √ | √ | √ | √ | √ |
1pc x MV400 Imager head and cable(5.5mm)
1pc x User’s manual
1pc x Protective carrying case
1pc x Imager head and cable
1pc x Charger
1pc x USB cable
1pc x Video out-cable ( TV-out cable)
Autel Maxivideo MV400 can be used to record digital still images and MPEG2 or MPEG1 videos either on its internal flash memory for more than 80 US, Asian and European vehicle
Autel MaxiVideo MV400 Feature & Functions:
1. 3.5 " high resolution full color LCD display (320x240)
2. Wide camera angle for images with 640x480 resolution
3. 5x digital zoom for increased viewing
4. Records and plays back still images and video clips
5. Mini USB connector for uploading images and videos to a computer
6. On-screen horizontal/vertical reverse
7. Narrow probe diameter available in 5.5mm(0.22") and fits most spark plug holes
8. With optional removable Micro SD cards, saves images and videos to take with anywhere
9. White LED to illuminate the inspection area, with illumination control
10. Views objects as close as 1"
11. Oil and scratch resistant tempered glass lens
12. 1M (39.4") semi-rigid, but flexible watertight shaft
13. Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use
14. Ergonomic and durable tool housing
15. Easy-to-use, multi-language interface
16. One-year limited warranty
Recommended use | Indoor |
Optimal viewing Distance | 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm diameter imager head |
Image capture | JPG images (640x480) AVI videos (320 x 240) |
Screen type display | 3.5" TFT LCD |
Display resolution | 320 x 240 |
Power supply | Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh) |
Tested battery life | 3-4 hours of continuous use |
Dimensions | 199 x 100 x 178mm (7.83" x 3.94" x 7.0") |
Recording medium | Micro SD card (Micro SD card is optional and not included) |
Imager head | 8.5mm (0.33") is standard and 5.5mm (0.22") is optional |
Waterproof | Imager head and cable to 3m (10') |
Additional ports | USB Video out (TV-out) port |
Operating temp | Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C) |
Storage temp | -4°F to 158°F (-20°C to 70°C) |
Video output | RCA |
TV out | NTSC PAL |
MaxiVideo MV400 | MaxiVideo MV500 | MaxiVideo MV480 | MaxiVideo MV460 | MaxiVideo MV160 | |
High resolution and full color digital LCD display | 3.5" (320×240) | 5” (1280×720) | 4.1" (1200×720) | 3.5'' (640 x 480) | Smartphone-based |
Record and play back high resolution still images and videos | 640×480 | 1280×720 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
Wireless monitor enables remote viewing | -- | √ | -- | -- | -- |
Touchscreen for convenient operation | -- | √ | -- | -- | -- |
Single button for quick photo and video recording | -- | -- | √ | √ | √ |
Add audio annotation for detail presentation | -- | √ | √ | -- | √ |
On-screen photo editing and markup | -- | √ | -- | -- | √ |
Dual cameras see straight ahead or at a 90° angle | -- | √ | √ | -- | -- |
Digital zoom for detailed viewing | 5× | 5× | 7× | 7× | 7× |
View objects as close as 1" | √ | √ | √ | √ | √ |
BOn-screen horizontal/vertical reverse | √ | √ | √ | √ | √ |
On-screen 90° clockwise rotation | -- | √ | √ | √ | √ |
Built-in & adjustable LED illuminates viewing area | √ | √ | √ | √ | √ |
HDMI port for monitor view | -- | √ | √ | √ | -- |
Mini USB connector for uploading images and videos | √ | √ | √ | √ | -- |
1 m long semi-rigid flexible watertight shaft | √ | √ | √ | √ | √ |
Narrow probe diameter available in both 5.5 mm and 8.5 mm | √ | 8.5 mm | 8.5mm (5.5mm Optional) | 8.5mm (5.5mm Optional) | 8.5mm (5.5mm Optional) |
Micro SD card slot for greater memory capacity | √ | √ | √ | √ | -- |
Oil and scratch resistant tempered glass lens | √ | √ | √ | √ | √ |
Ergonomic and durable tool housing | √ | √ | √ | √ | √ |
Built-in rechargeable Li-ion battery | √ | √ | √ | √ | √ |
Multilingual support | √ | √ | √ | √ | √ |
Water Resistant Camera head | √ | √ | √ | √ | √ |
1pc x MV400 Imager head and cable(5.5mm)
1pc x User’s manual
1pc x Protective carrying case
1pc x Imager head and cable
1pc x Charger
1pc x USB cable
1pc x Video out-cable ( TV-out cable)
